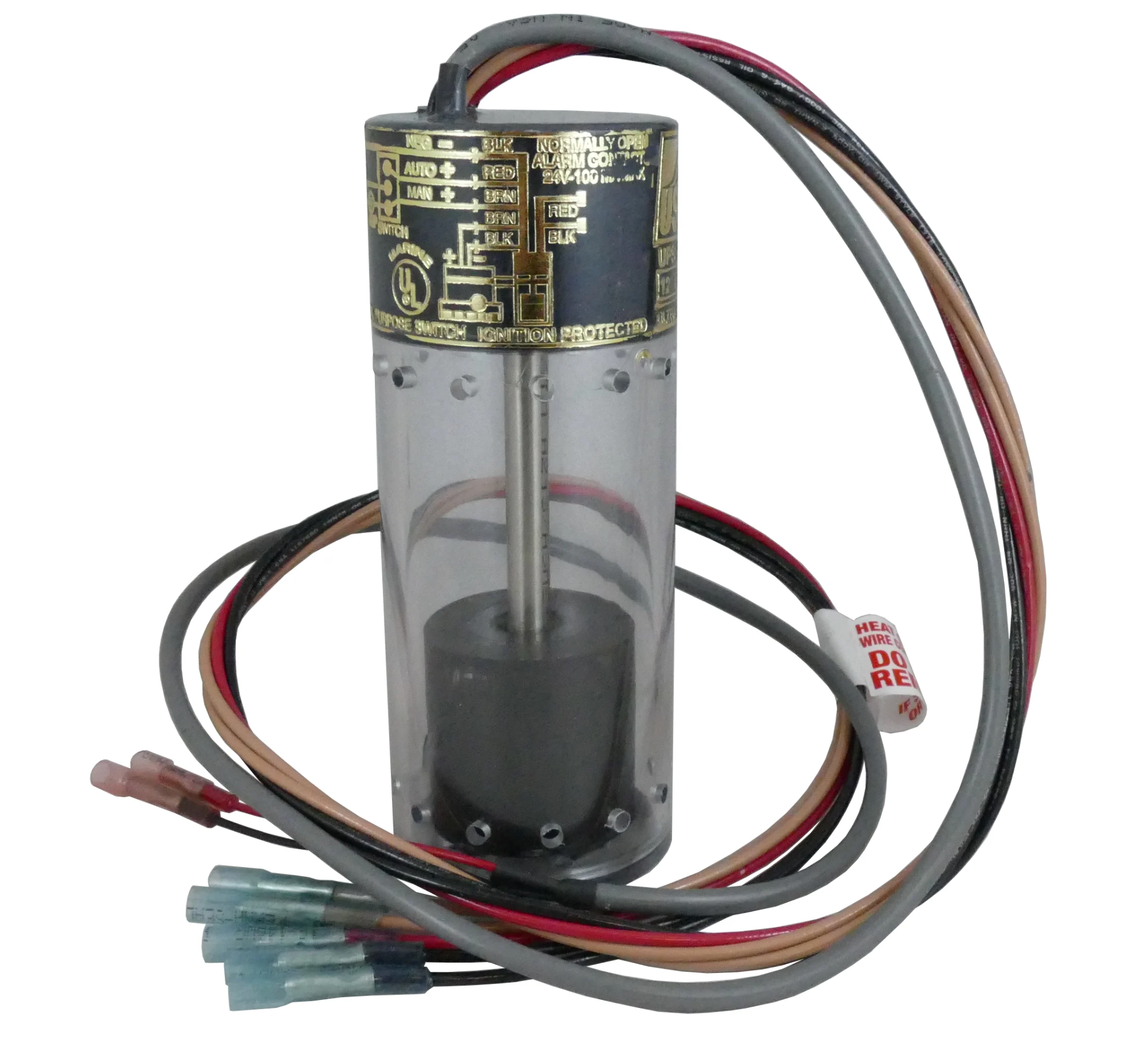

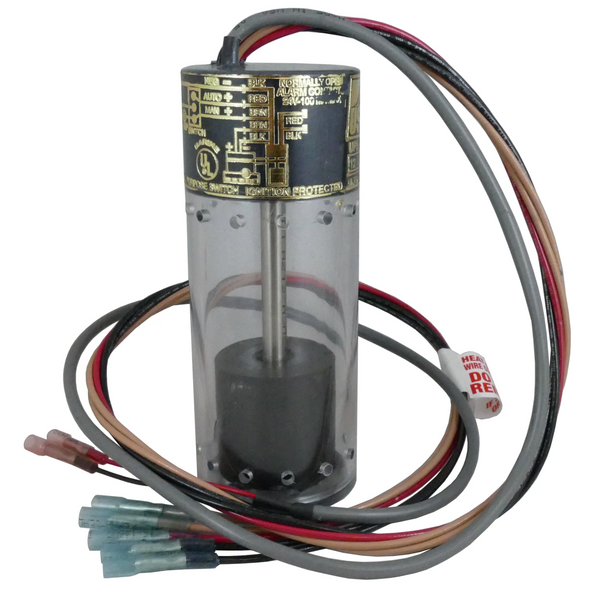

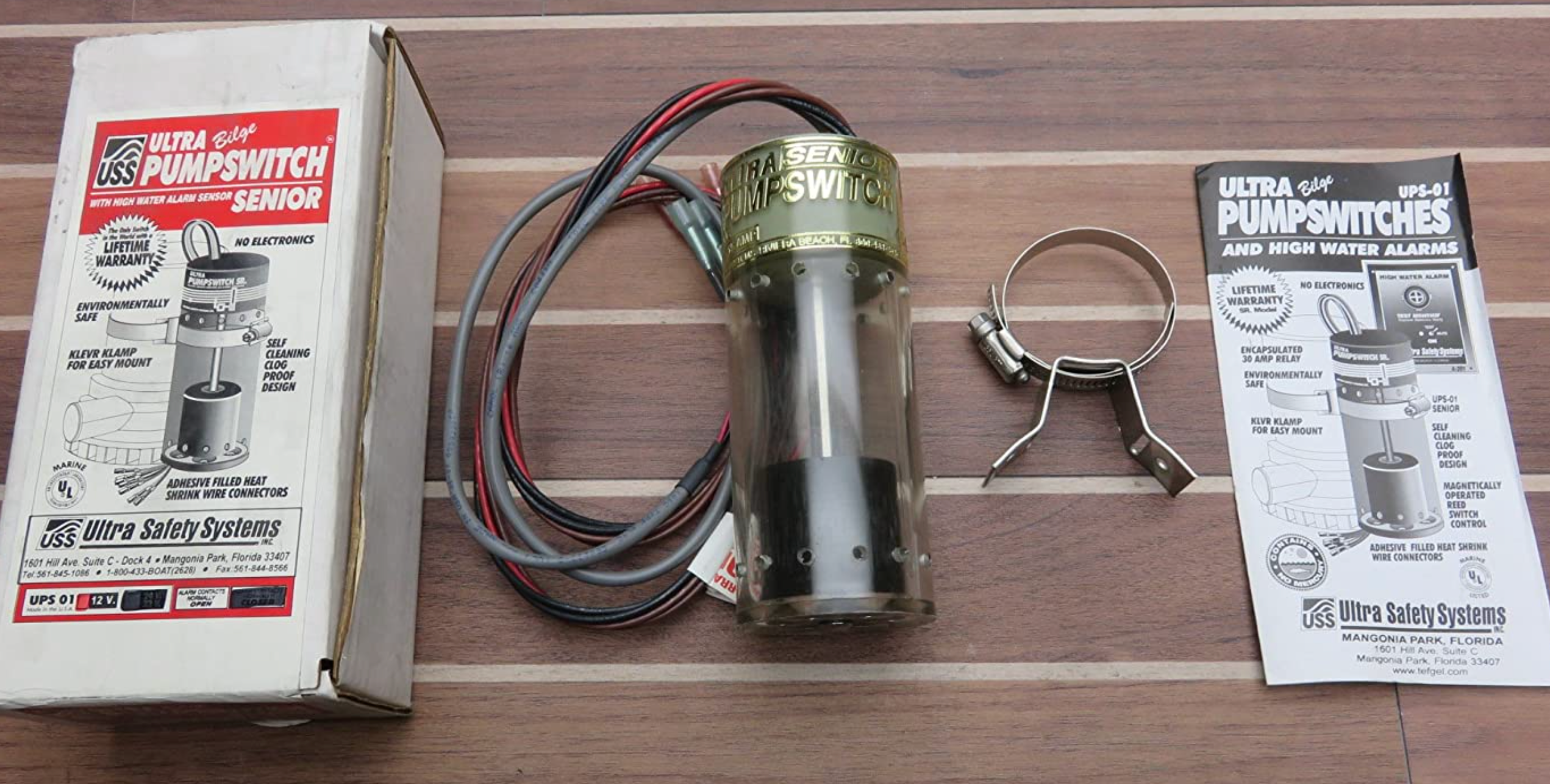

Ultra Safety Systems Ultra BILGE Pump Switch Senior , UPS -01

1-1/4" Differential with isolated high water alarm at 3", 30A relay, 15A pump load

Ultra Safety Systems Pump Switch Sr. UPS-01-12 V Bilge Float Switch W/High Water Alarm Sensor Dimensions: Height – 6 1/4” Diameter – 2 ½” Operating Voltage: 12 VDC Current rating- 15A @ 12V. Internal relay rated at 30A. Sensor Tube: Non-magnetic stainless steel Case Tubing: Buterate (highly resistant to impact fuel, oil, and salt water) Float: Buna-N Ignition protected. Power on indicator light on top. 1 1/4" ON/OFF differential. With isolated high water alarm switch at 3” Positive action, no time delays or electronics. Made in the USA Long leads with adhesive wall heat shrink butt-splice connectors installed. Wiring instructions permanently stamped on the housing. Unique design provides maximum immunity to clogging, sticking, or pump burnout. Exceeds U.S. Coast Guard Standards. Contains No Mercury. Factory New, Quality built by ULTRA SAFTEY SYSTEMS Don’t risk your boat or safety of your family and friends on an inferior switch.

About this item

• BUILT-IN HIGH WATER ALARM SENSOR
• LONG LEAD WIRES WITH ADHESIVE FILLED HEAT SHRINK WIRE CONNECTORS INSTALLED
• MARINE "UL" LISTED
• POWER INDICATOR LIGHT ON TOP
• SELF CLEANING CLOG PROOF DESIGN
